ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Г-н Жу стоимость, который нужно быть доверием, он имеет хорошую команду, они обеспечивает нам хорошее обслуживание и надежный качественный кабель.

—— Аарон

Г-н Жу обеспечивает нам буровую установку водяной скважины с хорошей ценой. спасибо.

—— Жюльен

Оставьте нам сообщение

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Большие изображения :  ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch

Подробная информация о продукте:
Место происхождения: Китай
Фирменное наименование: JINZHOU SHITAN
Сертификация: ISO/CE/COC
Номер модели: СТ-300
Оплата и доставка Условия:
Количество мин заказа: 1 комплект
Цена: Договоренно
Упаковывая детали: Стандартный экспортный пакет
Время доставки: 7-10 дней
Условия оплаты: Т/Т, Вестерн Юнион
Поставка способности: 2000 наборов в год
Подробное описание продукта
Название продукта: Оборудование для бурения глубоких скважин Номер модели: ST 200
Тип машины: Буровая установка для воды Сертификация: ISO/CE/COC
Диаметр отверстия: 100-350 мм Глубины бурения: 200 метров
Состояние: НОВЫЙ Буровой стержень: 76/89mm
Гарантия: 12 месяцев Крутящий момент вращения: 7500 нм, 983 нм, 4200 н.м, 3400 мм
После продажи службы: Видео поддержка Цвет: Желтый, красный и синий
Выделить:

ST 200 pneumatic water well drilling rig

,

large borehole diameter drilling rig

,

10 inch water well rig

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch
ST 200 Pneumatic Drilling Rig for Rocky Layer Blasting Borehole. Professional-grade borehole drilling equipment designed for deep underground operations in rocky layers, with capability to drill up to 200 meters.
Key Features
  • Designed for deep well drilling up to 200 meters
  • Pneumatic drive system for powerful performance
  • Suitable for hydrogeological exploration and water well drilling
  • Excellent adaptability for complex geological conditions
  • ISO certified with 12-month warranty
Product Specifications
Attribute Value
Model Number Crawler-mounted drilling rig
Machine Type Drilling Equipment
Certification ISO
Hole Diameter Customized (90-300mm)
Drilling Depths 200 meters
Condition New
Weight 8.9 T
Warranty 12 months
Rotation Torque 7500Nm, 983 N.m, 4200N.m
Air Consumption 16-30 M3/min, 20-100m3/min
Color Options Yellow, Red and Blue
Technical Details
  • Power: Diesel
  • Dimensions: 6400MM × 2250MM × 2700MM
  • Weight: 5800KG
  • Rotary Speed: 0-90rpm
  • Travelling Speed: 0-2.5km/h
  • Drilling Rods: 76×2m + 76×3m
Equipment Components
  • Pneumatic System: Provides power to drive the rotation and impact of the drill bit
  • Drill Rod System: Multiple sections of drill rods for gradual penetration
  • Drill Bit: Various types available based on geological conditions
  • Control System: Adjusts drilling parameters like rotation speed and impact force
  • Debris Removal System: Uses compressed air or mud to keep borehole clean
Safety Precautions
  • Operators must undergo professional training
  • Wear safety helmets, gloves, and other protective equipment
  • Inspect surrounding environment before operation
Product Images

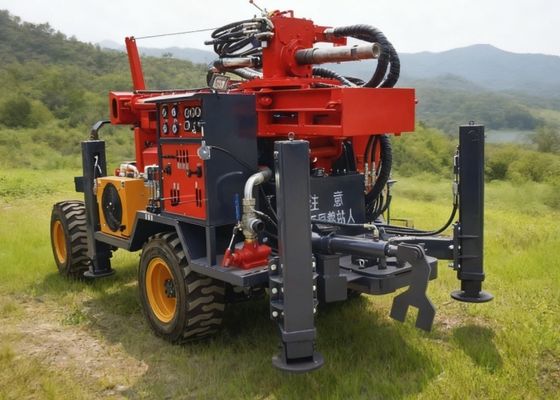

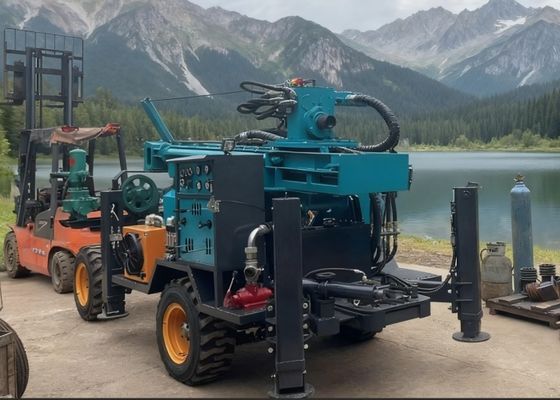

ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 0
Front View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 1
Side View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 2
Operational View
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 3
Drilling Mechanism
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 4
Working Environment
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 5
Control Panel
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 6
Drill Bit Close-up
ST 200 Pneumatic New Water Well Drilling Rigs with Large Borehole Diameter 10 Inch 7
Full Operational Setup
